TESTINA MM1

€ 167,00

DATI TECHNICI:

Output voltage at 1 kHz, 5cm/sec. 5.5 mV
Compliance, dynamic, lateral 20 μm/mN
Stylus type Elliptical
Recommended Tracking force 1.8 g(18 mN)
Frequency range at -3 Db 20-20.000 Hz
recommended Load resistance 47 kOhm
Recommended Load capacitance 150-300 pF
Tracking ability at 315 Hz at recommended tracking force 70 μm

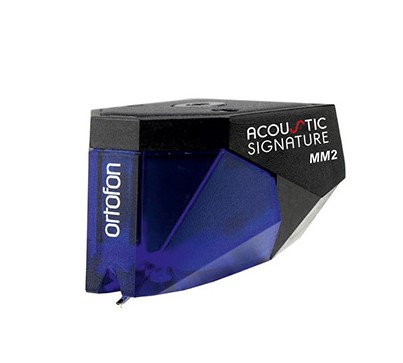

TESTINA MM2

€ 390,00

DATI TECHNICI:

Output voltage at 1 kHz, 5cm/sec. 5.5 mV
Compliance, dynamic, lateral 20 μm/mN
Stylus type Nude Elliptical
Recommended Tracking force  1.8 g (18 mN)
Frequency range at -3 dB 20-25.000 Hz
Recommended Load resistance 47 kOhm
Recommended Load capacitance 150-300 pF
Tracking ability at 315 Hz at recommended tracking force 80 μm

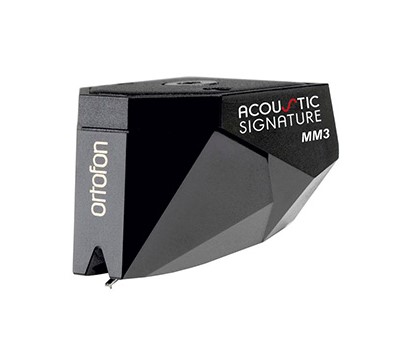

TESTINA MM3

€ 815,00

Output voltage at 1 kHz, 5cm/sec. 5 mV
Compliance, dynamic, lateral 22 μm/mN
Stylus type Nude Shibata
Recommended Tracking force 1,5 g (15 mN)
Frequency range at -3 dB 20-31.000 Hz
Recommended Load resistance 47 kOhm
Recommended Load capacitance 150-300 pF
Tracking ability at 315 Hz at recommended tracking force 80 μm
